Informații despre produs

Application

Compatible for Renault Super 5 1.4 Turbo GT
Compatible for Renault 5 Series 122_ 1972-1985 Hatchback 1.4, 1.4 Turbo
Compatible for Renault Super 5 B/C40_ 1984-1996 Hatchback 1.4 Turbo GT



Specification

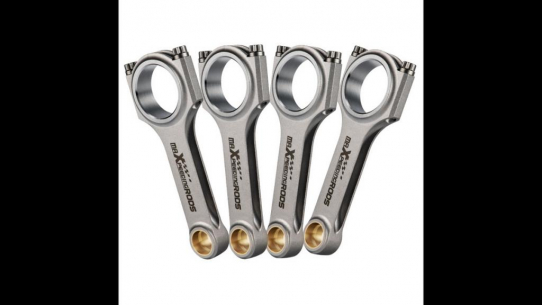

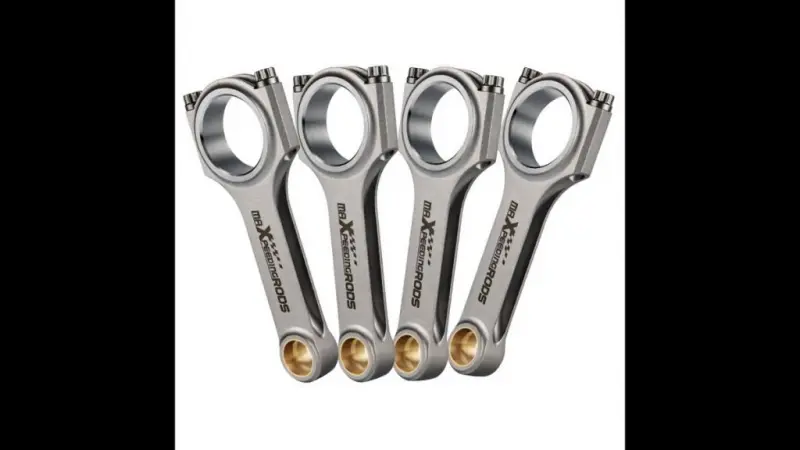

Performance Con Rods
Quantity:4 Pieces a set as showing in picture
Bolts:Including Genuine ARP 2000 3/8" bolts (Note Extra cost for upgrading to ARP L19 bolts)
Type:4340 EN24 H-Beam Connecting Rod
Weight Tolerance:Balanced to +/- 1 gram in set
PISTON BOLT HOLE: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm



Dimensions

Center to center length:  128mm
Big end diameter:  47.61mm
Small end diameter:  20mm
Big end width:  21.8mm
Small end width: 21.8mm



Feature
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing- Designed and processed by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pin


Note
- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
